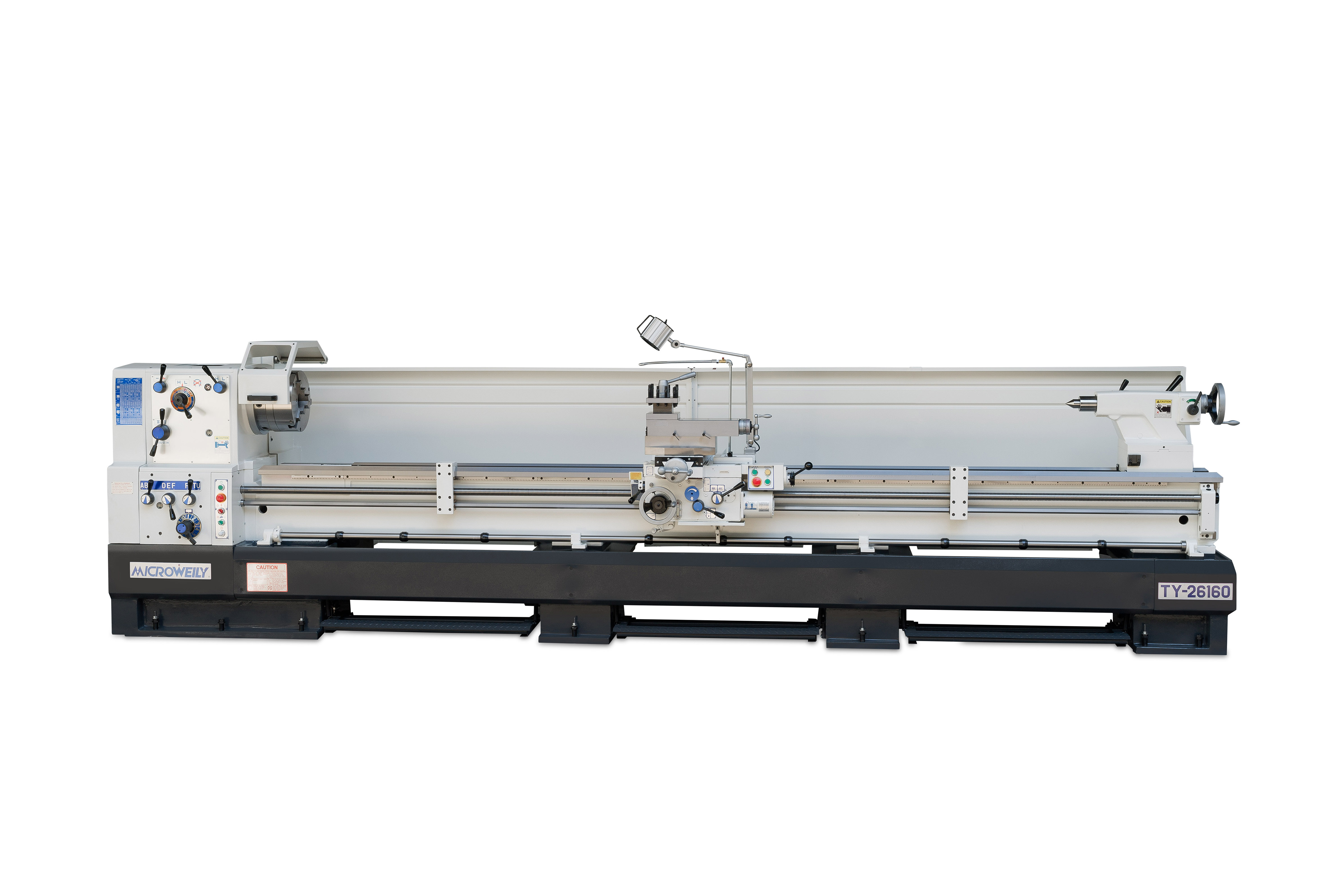

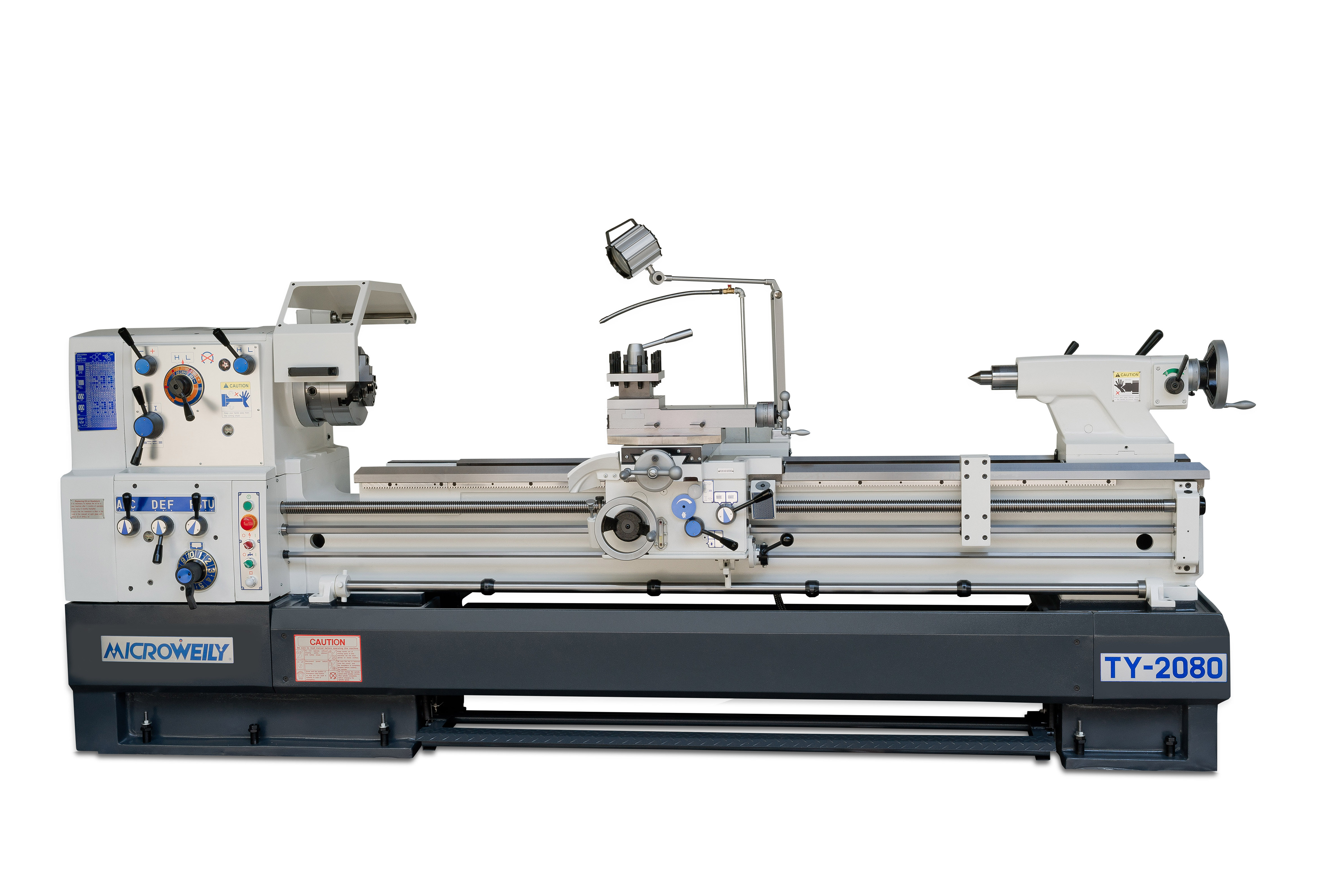

<table class="tabelfmbkenmerken" style="width: 97.1231%; height: 2574px;"> <thead> <tr style="height: 74.7188px;"> <td style="width: 253.735%;" colspan="8"> <h5 style="text-align: center;"><span style="font-size: 14pt;">Technische kenmerken</span></h5> </td> </tr> </thead> <tbody> <tr> <td style="width: 32.5016%;">Type</td> <td style="text-align: center; width: 22.2831%; line-height: 1;" colspan="2"><strong>20</strong></td> <td style="text-align: center; width: 22.1351%; line-height: 1;"><strong>22</strong></td> <td style="text-align: center; width: 176.815%; line-height: 1;" colspan="4"><strong>26</strong></td> </tr> <tr style="height: 36.1719px;"> <td style="width: 32.5016%;">Model</td> <td style="text-align: center; line-height: 1; width: 22.2831%;" colspan="2"> <p><strong>TY-2040&nbsp; &nbsp; &nbsp;TY-20100</strong></p> <p><strong>TY-2060&nbsp; &nbsp; &nbsp;TY-20120</strong></p> <p><strong>TY-2080&nbsp; &nbsp; &nbsp;TY-20160</strong></p> </td> <td style="text-align: center; width: 22.1351%; line-height: 1;"> <p><strong>TY-2240&nbsp; &nbsp; TY22100</strong></p> <p><strong>TY-2260&nbsp; &nbsp; &nbsp;TY-22120</strong></p> <p><strong>TY-2280&nbsp; &nbsp; &nbsp;TY-22160</strong></p> </td> <td style="text-align: center; width: 176.815%; line-height: 1;" colspan="4"> <p><strong>TY-2640&nbsp; &nbsp; &nbsp;TY-26100</strong></p> <p><strong>TY-2660&nbsp; &nbsp; &nbsp;TY-26120</strong></p> <p><strong>TY-2680&nbsp; &nbsp; &nbsp;TY-26160</strong></p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Draaidiameter boven bed</td> <td style="width: 22.2831%; text-align: center; line-height: 1;" colspan="2"> <p>&Oslash; 510 mm</p> </td> <td style="width: 22.1351%; text-align: center; line-height: 1;"> <p>&Oslash; 560mm</p> </td> <td style="width: 176.815%; text-align: center; line-height: 1;" colspan="4"> <p>&Oslash; 660mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Draaidiameter boven dwarsslede</td> <td style="width: 22.2831%; line-height: 1;" colspan="2"> <p style="text-align: center;">&Oslash; 330mm</p> </td> <td style="width: 22.1351%; line-height: 1;"> <p style="text-align: center;">&Oslash; 360mm</p> </td> <td style="width: 176.815%; text-align: center; line-height: 1;" colspan="4"> <p>&Oslash; 460mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Draaidiameter in zak</td> <td style="width: 22.2831%; text-align: center; line-height: 1;" colspan="2"> <p>&Oslash; 680mm</p> </td> <td style="width: 22.1351%; line-height: 1;"> <p style="text-align: center;">&Oslash; 745mm</p> </td> <td style="width: 176.815%; text-align: center; line-height: 1;" colspan="4"> <p>&Oslash; 845mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Centerhoogte</td> <td style="width: 22.2831%; text-align: center; line-height: 1;" colspan="2"> <p>255mm</p> </td> <td style="width: 22.1351%; text-align: center; line-height: 1;"> <p>280mm</p> </td> <td style="width: 176.815%; text-align: center; line-height: 1;" colspan="4"> <p>330mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Afstand tussen centers</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">&nbsp;</p> <p style="text-align: center;">1000mm (40") / 1530mm (60") / 2040mm (80") /&nbsp;2550mm (100") / 3060mm (120") / 4060mm (160")</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">bed breedte</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7">400mm</td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Hoofdmotor</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7">10 HP, 3Ph (standaard)&nbsp; &nbsp; &nbsp;15 HP, 3Ph (optie)</td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Koelpomp</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">1/8 HP</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Hoofdasboring</td> <td style="text-align: center; line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">80mm (standaard)&nbsp; &nbsp; &nbsp;105mm (optie)</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Spindelneus</td> <td style="text-align: center; line-height: 1; width: 221.233%;" colspan="7"> <p>Camlock D1-8 of A1-8 (standaard)&nbsp; &nbsp; &nbsp;D1-11 of A1-11 (optie)</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Conus (Mk)</td> <td style="text-align: center; line-height: 1; width: 221.233%;" colspan="7"> <p>7 - 5 (standaard)&nbsp; &nbsp; &nbsp;8 - 5 (optie)</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Aantal snelheden</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7">12 standen</td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Snelheden (gamma)</td> <td style="line-height: 1; width: 221.233%; text-align: center;" colspan="7">20 - 1550 tpm (standaard)&nbsp; &nbsp; &nbsp;15 - 1200tpm (optie voor 22/26)</td> </tr> <tr style="height: 76.7656px;"> <td style="width: 32.5016%;">Slaglengte dwarsslede</td> <td style="line-height: 1; width: 44.4182%;" colspan="3"> <p style="text-align: center;">320 mm</p> </td> <td style="line-height: 1; width: 176.815%; text-align: center;" colspan="4">380 mm</td> </tr> <tr> <td style="width: 32.5016%;">Slaglengte beitelhouderslede</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7"> <p style="text-align: center;">255 mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Draadspil</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7">&Oslash; 38 mm</td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">60 Withworth draden</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">2 - 112 Tpi</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">60 Metrische draden</td> <td style="line-height: 1; width: 221.233%; text-align: center;" colspan="7">0.2 - 14 mm</td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Diametral pitches</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">4 - 112 Dp</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Moduul draden</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">0.2 - 7 Mp</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Withworth voedingen langs</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">0.0014" -0.0387"</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Metrische voedingen langs</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">0.037 - 1.04 mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Dwarsvoedingen withworth</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">0.0007" -0.01935"</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">50 Dwarsvoedingen metrisch</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">0.0185 - 0.52 mm</p> </td> </tr> <tr style="height: 76.8125px;"> <td style="width: 253.735%;" colspan="8"> <h5 style="text-align: center;">TEGENPUNT</h5> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Slaglengte</td> <td style="line-height: 1; width: 221.233%; text-align: center;" colspan="7"> <p style="text-align: center;">160 mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Tegenpunt</td> <td style="line-height: 1; width: 221.233%; text-align: center;" colspan="7"> <p style="text-align: center;">&Oslash; 75 mm</p> </td> </tr> <tr style="height: 68.1719px;"> <td style="width: 32.5016%;">Conus (Mk)</td> <td style="line-height: 1; width: 221.233%; text-align: center;" colspan="7"> <p style="text-align: center;">5</p> </td> </tr> <tr style="height: 76.7188px;"> <td style="width: 253.735%;" colspan="8"> <h5 style="text-align: center;">AFMETINGEN &amp; GEWICHT</h5> </td> </tr> <tr style="height: 76.7188px;"> <td style="width: 32.5016%;">Machine lengte</td> <td style="line-height: 1; width: 221.233%;" colspan="7"> <p style="text-align: center;">2538 mm / 3048 mm / 3558 mm /&nbsp;4068 mm / 4578 mm / 5596 mm</p> </td> </tr> <tr style="height: 76.7188px;"> <td style="width: 32.5016%;">Machine breedte</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7"> <p style="text-align: center;">1280 mm</p> </td> </tr> <tr style="height: 90.5625px;"> <td style="width: 32.5016%;">machine hoogte</td> <td style="line-height: 1; text-align: center; width: 221.233%;" colspan="7">1255 mm voor 20 serie / 1305 mm voor 22 serie / 1355 mm voor 26 serie</td> </tr> <tr> <td style="width: 32.5016%;">Netto gewicht</td> <td style="line-height: 1; text-align: center; width: 22.2831%;" colspan="2"> <p>1980Kg(2040) / 2230Kg(2060)</p> <p>2480Kg(2080) / 2730Kg(20100)</p> <p>2980Kg(20120) / 3480Kg(20160)</p> </td> <td style="line-height: 1; width: 22.1351%; text-align: center;"> <p>2030Kg(2240) / 2280Kg(2260)</p> <p>2530Kg(2280) / 2780Kg(22100)</p> <p>3030 Kg(22120) / 3530Kg(22160)</p> </td> <td style="line-height: 1; text-align: center; width: 176.815%;" colspan="4"> <p>2080Kg(2640) / 2330Kg(2660)</p> <p>2580Kg(2680) / 2830Kg(26100)</p> <p>3080Kg(26120) / 3580Kg(26160)</p> </td> </tr> </tbody> </table>
