PFF – Portaalpers (framepers)

De PFF is een zware uitvoering met een portaalconstructie, ontworpen voor grotere en zwaardere werkstukken.

‍
Kenmerken:

Open frame (portaal) voor maximale toegankelijkheid
Verstelbare werktafel
Geschikt voor grotere onderdelen en plaatmateriaal
Hoge perscapaciteit

Ideaal voor toepassingen in staalbouw, constructie en industrie waar flexibiliteit en kracht vereist zijn.

‍

No items found.

<table style="border-collapse: collapse; width: 96.6667%; height: 39px; border-width: 1px; background-color: #41a62a;" border="1"> <tbody> <tr style="height: 39px;"> <td style="text-align: center;"> <h4><strong><span style="font-size: 14pt; color: #ffffff;">TECHNISCHE KENMERKEN</span></strong></h4> </td> </tr> </tbody> </table> <table style="border-collapse: collapse; width: 96.6654%; height: 637.891px;" border="1"><colgroup><col style="width: 11.4125%;"><col style="width: 21.0265%;"><col style="width: 21.0265%;"><col style="width: 21.5267%;"><col style="width: 8.14561%;"><col style="width: 8.07467%;"><col style="width: 8.78754%;"></colgroup> <tbody> <tr style="height: 95.3125px;"> <td style="text-align: center;"> <h5><strong>TYPE</strong></h5> </td> <td style="text-align: center;"> <h5><strong>KRACHT</strong></h5> </td> <td style="text-align: center;"> <h5><strong>SLAGLENGTE (M)</strong></h5> </td> <td style="text-align: center;"> <h5><strong>BREEDTE (D)</strong></h5> </td> <td style="text-align: center;"> <h5><strong>WERKSNELHEID (mm/sec)</strong></h5> </td> <td style="text-align: center;"> <h5><strong>KW</strong></h5> </td> <td style="text-align: center;"> <h5><strong>KG</strong></h5> </td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 70</td> <td style="text-align: center;">400 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">900 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">1.5</td> <td style="text-align: center;">810</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 70M*</td> <td style="text-align: center;">700 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">900 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">1.5</td> <td style="text-align: center;">850</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 100</td> <td style="text-align: center;">1000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1050 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">2.5</td> <td style="text-align: center;">1150</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 100M*</td> <td style="text-align: center;">1000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1050 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">2.5</td> <td style="text-align: center;">1200</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 100MC*</td> <td style="text-align: center;">1000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">2.5</td> <td style="text-align: center;">1800</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 150</td> <td style="text-align: center;">1500 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">2200</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 150M**</td> <td style="text-align: center;">1500 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">2500</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 150MD**</td> <td style="text-align: center;">1500 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">3300</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 200</td> <td style="text-align: center;">2000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">2900</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 200M**</td> <td style="text-align: center;">2000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">3750</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 200MD**</td> <td style="text-align: center;">2000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">2000 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">4</td> <td style="text-align: center;">4200</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 300</td> <td style="text-align: center;">3000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">7.5</td> <td style="text-align: center;">6000</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 300MD**</td> <td style="text-align: center;">3000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">2000 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">7.5</td> <td style="text-align: center;">6500</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 400</td> <td style="text-align: center;">4000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">1500 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">7.5</td> <td style="text-align: center;">7000</td> </tr> <tr style="height: 36.1719px;"> <td style="text-align: center;">PFF 400MD**</td> <td style="text-align: center;">4000 kN</td> <td style="text-align: center;">500 mm</td> <td style="text-align: center;">2000 mm</td> <td style="text-align: center;">2</td> <td style="text-align: center;">7.5</td> <td style="text-align: center;">8000</td> </tr> </tbody> </table> <p> </p> <p><strong>M : Met verplaatsbare zuiger</strong></p> <p><strong>* = Manueel</strong></p> <p><strong>** = Hydraulisch</strong></p>

Cilindrische eindschakelaar

Eindschakelaar

De cilinderslag kan handmatig via microschakelaars of digitaal via een encoder worden ingesteld, waarmee de zuigerpositie nauwkeurig wordt gemeten en de beweging automatisch wordt geregeld

Anti-rotatie voor de stang

Anti-rotatie stang

De antirotatievoorziening voorkomt verdraaiing van de cilinderstang, zodat eventuele matrijzen veilig op hun plaats blijven

Een paar V-vormige prisma's

V-vormige prismen ondersteunen metalen werkstukken en worden gebruikt voor het richten en buigen van buizen, staven of profielen, stevig bevestigd op het werkoppervlak van de pers

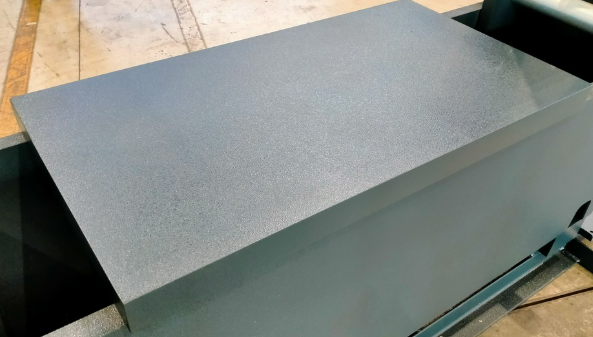

Metalen steunplaat

De metalen werkstukopspanningsplaat biedt stevige ondersteuning voor het werkstuk, is mechanisch te bevestigen op het persplatform en is beschikbaar in verschillende afmetingen en diktes voor optimale drukweerstand

Download :

Folder - PFF
